2026 Armada Excursion X-248 2 tubes Black Outer Sheet

  • 2026 Armada Excursion X 248 2 tubes Black Outer Sheet
  • 2026 Armada Excursion X 248 2 tubes Black Outer Sheet
  • 2026 Armada Excursion X 248 2 tubes Black Outer Sheet
  • 2026 Armada Excursion X 248 2 tubes Black Outer Sheet
  • 2026 Armada Excursion X 248 2 tubes Black Outer Sheet
  • 2026 Armada Excursion X 248 2 tubes Black Outer Sheet
  • 2026 Armada Excursion X 248 2 tubes Black Outer Sheet
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

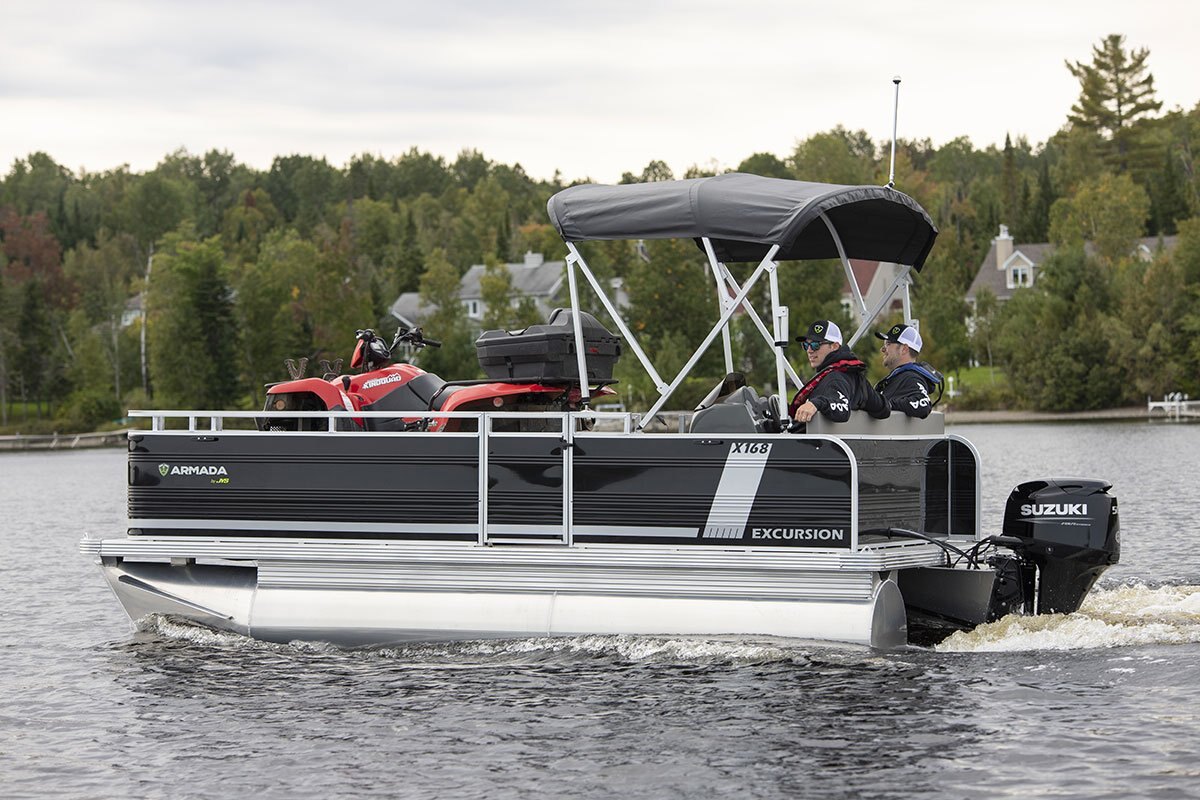

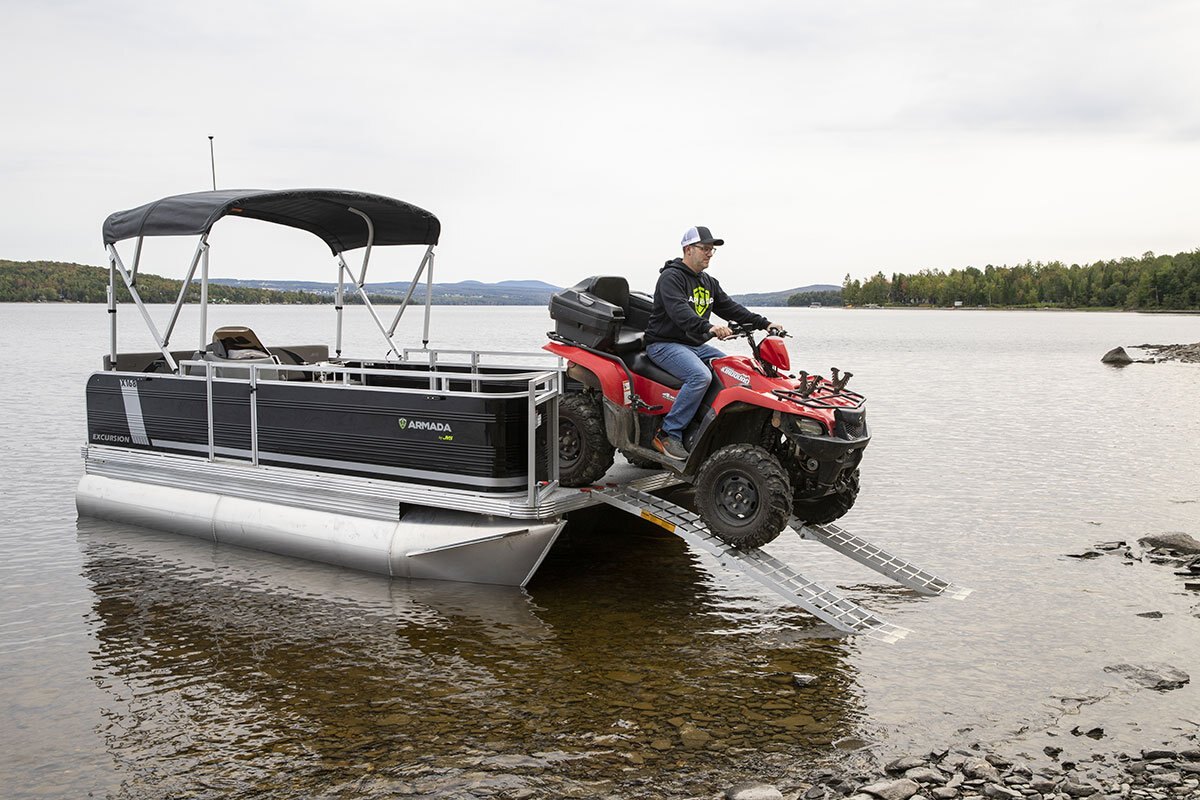

The Excursion is our transport pontoon that will assist you with your toughest jobs. It offers a large loading capacity and plenty of space. Just picture it with your ATV and building supplies!

Specifications
Model
Excursion
Category Name
Boat
Year
2026
Sale Type
New
Manufacturer
Armada
Deck Width
8’
Deck Length
23’10”
Load Capacity
3023 lbs
Maximum Power
150 HP
Tube Diameter
25”
Overall Length
25’6”
Aluminum Thickness
.081”
Approximate Weight
1689 lbs
Passenger Capacity
14
standard equipment

STRUCTURE

  • 25" diameter tubing in hermetically sealed section
  • Tube protective ribbands underneath
  • Bolted and welded frame construction
  • Z-shaped crosspiece of 3/16″ aluminum profiled rods every 24" and reinforced at 12" for the engine box support
  • "V"-thick 3/16" motor box for E-Drive electric motor
  • ¾" marine grade plywood flooring
  • Non-slip marine vinyl floor finish two tone grey
  • Splash-proof strakes
  • 2 20" boarding gates on the sides
  • 2 32" loading doors at the front (total opening of 64")
  • 1-¼" anodized aluminum extrusion railing raised 3/8" for ventilation
  • Standard boarding ladder

Furnishing

  • 2 classic benches with aluminum bases
  • Storage space under rear module

Console

  • Standard rotomould console
  • Standard steering wheel with mechanical driving system
  • Cell phone holder

Instrumentation

  • Mechanical steering system
  • Electric horn

Other Features

  • Battery box
  • Navigation lights




popular options
  • Additional center tube with integrated motor box
  • Additional center front half tube
  • Underfloor underskin to minimize water noise under the pontoon (only with 3rd tube option)
  • Performance strakes
  • 2 front classic benches with aluminum bases
  • Storage canvas (Mooring)
  • Rear bimini rooftop
  • Electric horn
  • Boss marine Bluetooth two (2) speakers sound system
  • Portable 6 gallons gas tank (all dimensions)
  • Integrated gas tank in the 17 gallons motor box (X-188)
  • Integrated gas tank in the 27 gallons motor box (except X-188)
  • Cell phone induction charger
  • Longitudinal LED light under floor (battery not included)
