FIXED SETBACK PLATE (PANTHER)

Specifications

Category Name	Engine-outboard Motor Mounts, Jack Plates, Trim & Tilt Units	Stock Number	781-550220	Sale Type	New
Manufacturer	Panther	UPC	836125002205	Hazard	9
LNSuse1	84218	LNSuse3	61600	ModuleID	PF_382657
DMPPartNo	24-0938	KMSPartNo	PAN 550220	AS400Description	2 SET BACK PLATE/SPACER
VendorItemNumber	550220	WebLongDescription	Cast aluminum spacer provides 2" of setback for bolt-on motors. Made of 713 cast aluminum, dipped in a zinc rich primer then powder coated. This solid spacer installs directly on the transom or adds additional setback to an existing jack plate. Has a standard BIA bolt pattern, but is drillable for non-standard patterns. Overall size: 16" Wx 13.25 H x 2"D. Support weight is 300HP and 635 lbs.	WebShortDescription	Panther 2" Set-Back Plate
Price	Contact for price CAD

Description

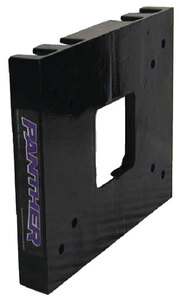

Cast aluminum spacer provides 2\" of setback for bolt-on motors. Made of 713 cast aluminum, dipped in a zinc rich primer then powder coated. This solid spacer installs directly on the transom or adds additional setback to an existing jack plate. Has a standard BIA bolt pattern, but is drillable for non-standard patterns. Overall size: 16\"W x 13.25H x 2\"D. Support weight is 300HP and 635 lbs.
